HIKVISION DS-2CD1321-I

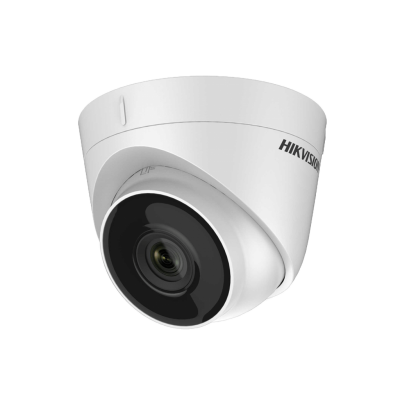

HIKVISION DS-2CD1321-I IP Dome camera 2 Mpixel POE
HIKVISION DS-2CD1321-I Δικτυακή κάμερα τύπου Dome 2MPIXEL, EXIR, εξωτερικού χώρου, H.264+ 1/2.8’’, σταθερός ευρυγώνιος φακός 2.8mm (γωνία θέασης 95.4°), υπέρυθρος φωτισμός (IR) εμβέλειας ως 30 m.
Xαρακτηριστικά
DS-2CD1321-I 2.0 MP CMOS Network Turret Camera
2.0 MP CMOS Network Dome Camera
-
- 1/2.8″ progressive scan CMOS
- Up to 2.0 megapixel
- 2.8 mm/4 mm/6 mm fixed focal lens
- Up to 30 m IR range
- Dual stream
- Digital WDR (Wide Dynamic Range)
- 3D DNR (Digital Noise Reduction)
- PoE (Power over Ethernet)
- IP67
- Mobile monitoring via Hik-Connect
Τεχνικά χαρακτηριστικά
| ιmage Sensor: | 1/2.8″ Progressive Scan CMOS | |
| Min. Illumination: | 0.01Lux @(F1.2,AGC ON) ,0 Lux with IR | |
| Shutter time: | 1/3 s to 1/100,000 s | |
| Slow shutter: | support | |
| Lens: | 2.8 mm @F2.0, horizontal field of view 95°, 4 mm @F2.0, horizontal field of view 83.6° 6 mm @F2.0, horizontal field of view 55° |
|
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360° | |
| Day& Night: | IR cut filter with auto switch | |
| Wide Dynamic Range: | Digital WDR | |
| Digital noise reduction: | 3D DNR |
| Compression Standard | ||
|---|---|---|
| Video Compression: | H.264+/H.264/MJPEG | |
| H.264 code profile: | Baseline Profile/Main Profile | |
| Video bit rate: | 32Kbps~8Mbps | |
| Dual Stream: | Yes | |
| Image | ||
|---|---|---|
| Max. Image Resolution: | 1920 x 1080 | |
| Frame Rate: | 50Hz: 25fps @(1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps @(1920 × 1080, 1280 × 960, 1280 × 720) |
|
| Sub Stream: | 50Hz: 25fps @(704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps @(704 × 480, 640 × 480, 352 × 240, 320 × 240) |
|
| Image Settings: | Brightness, saturation, contrast, sharpness are adjustable via web browser or client software | |
| BLC: | Yes, zone configurable | |
| ROI: | support 1 fixed region) | |
| Day/Night Switch: | Support auto, scheduled | |
| Network | ||
|---|---|---|
| General Function: | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter | |
| Network Storage: | NAS (Support NFS,SMB/CIFS) | |
| Alarm Trigger: | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error | |
| Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | |
| System Compatibility: | ONVIF (Profile S, Profile G), ISAPI | |
| Interface | ||
|---|---|---|
| Communication Interface: | 1 RJ45 10M/100M self-adaptive Ethernet port | |
| General | ||
|---|---|---|
| Operation Condition: | -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing) | |
| Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3) | |
| Power Consumption: | Max. 4 W/6 W (PoE) | |
| Weather Proof: | IP67 | |
| IR Range: | Up to 30m | |
| Dimensions: | Φ 85.5 mm × 70 mm (3.38″ × 2.76″) | |
| Weight: | 350 g (0.77 lb.) | |
Περισσότερα στην σελίδα του κατασκευαστή εδώ,
| Cam ανάλυση | 2 mpixel |
|---|---|
| CAMERA IR LED | Εως 30 μέτρα νυχτερινή λήψη |
| Χρώμα κάμερας | Λευκό |
| CAMERA τύπος | IP CAMERA |
| Camera χρήση | Εσωτερική και εξωτερική |
| Διάμετρος φακού | 2,8 mm |
| IP CAM POE | Διαθέτει POE |
| CAM IP Codec | H264, H264+ |
